Lesson 1 Standard Workflow

This is a step-by-step guide covering the most common activities when setting up your IoT solution on the platform. It is intended for users with full access rights to all features in the platform. The steps are presented in a natural, logical order-each with a short introduction, followed by more detailed information in the training material, user guide, and developer documentation.

The basics – Understanding Connectors

Connectors are essential building blocks that bring external data into the platform. They store the necessary credentials, endpoints, and topics that allow the IoT platform to subscribe to data streams from remote systems. Setting up a connector typically requires access to the external system, along with the correct credentials and permissions. Since each system is different, some understanding of how the source platform works is usually required.

What Are Connectors Used For?

Connectors are used to integrate the IoT platform with various data sources, such as:

• Public services (e.g., OpenWeatherMap)
• LoRaWAN network servers
• Devices using protocols like MQTT, HTTP, NB-IoT, Cat M, BACnet, Modbus, and others

New to the Platform?

If you're new to the platform, you likely already have at least one connector configured, and some devices may already be shared with you by your IoT administrator.

• If you need to add your own devices, continue to Step 1 – Adding Devices.
• If not, you can skip ahead to Step 2 – Visualization - Device List Views to start working with the data.

Step 1 - Adding devices

When you have at least one connctor it is time to add devices. Once devices are added you can monitor them with views. So let's get started

Adding IoT nodes

Adding IoT nodes to the IoT platform is the foundation. There are three main types of IoT nodes:

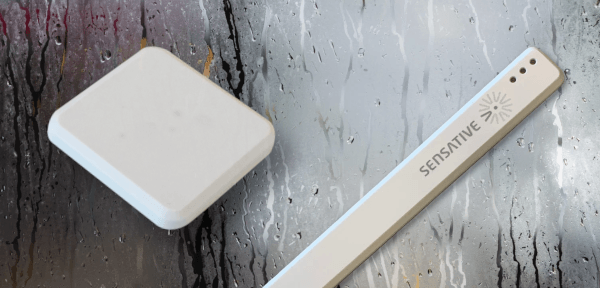

• Devices: Represent a physical device, normally a sensor or an actuator. Devices usually requires that you add a device type unique "translator" to decode incoming compressed data.

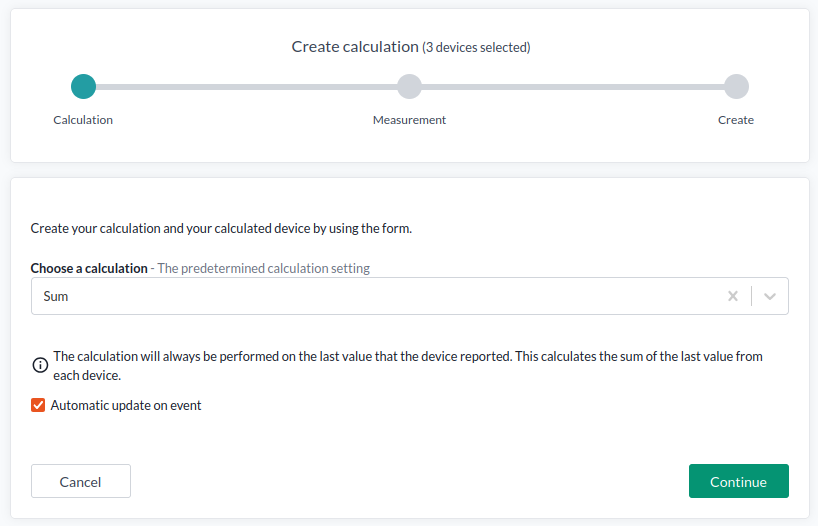

• Virtual Node: A logical node used in data flow to hold some type of state or indirectly represent a physical device - such as a geofence, a WiFi beacon, a calculated node, or a simulated device.
• Services: Data coming from external services like OpenWeatherMap or Nordpool (energy price data).

It is recommended to start by adding LoRaWAN IoT devices, as LoRaWAN is currently the most widely deployed LPWAN protocol. It is also the most open and standardized in terms of operation, which makes integration and management simpler.

Once a device has been added, it may need to be configured to report data at the desired time interval. For LoRaWAN devices, this can be done directly by navigating to LoRaWAN Control and sending a configuration downlink. Alternatively, multiple devices can be configured at once using Select Many → Configure.

Learn More

1. Training material for New LoRaWAN Devices
2. User guide for New Devices

Step 2 - Visualization - Device List Views

Understanding Views

Views let you display device data in a structured, customizable table using visual elements like color indicators, progress bars, and circular gauges. You can also include interactive components-such as command buttons-to control actuators directly from the view.

Devices can be grouped and arranged freely using drag-and-drop, and columns can be fully customized to show exactly the data you need. To control which devices appear in a view, use Q query filters. For example, entering temperature > 23 in the Custom Query box filters out devices below that threshold-helpful when identifying overheating rooms or energy inefficiencies.

Device values update in real time, but filters are only applied when you click the Refresh button in the top-right corner of the device list. To automate this, set a Refresh Timer to periodically update filters and keep your view current.

Once you're done with the setup, you can save the view and share it with others-either directly or through the Organisation Manager.

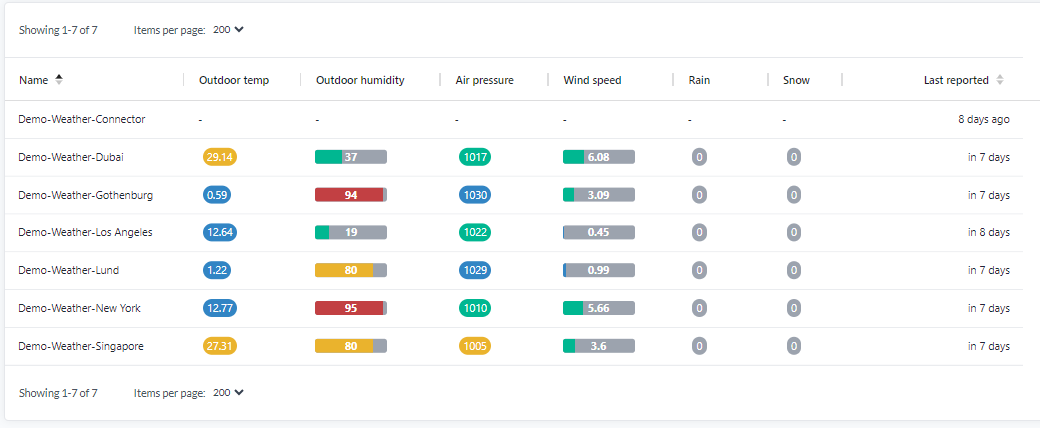

Use color coding and thresholds to highlight important values. Choose from several graphical components, including progress bars and circles. Time-based color coding is also supported.

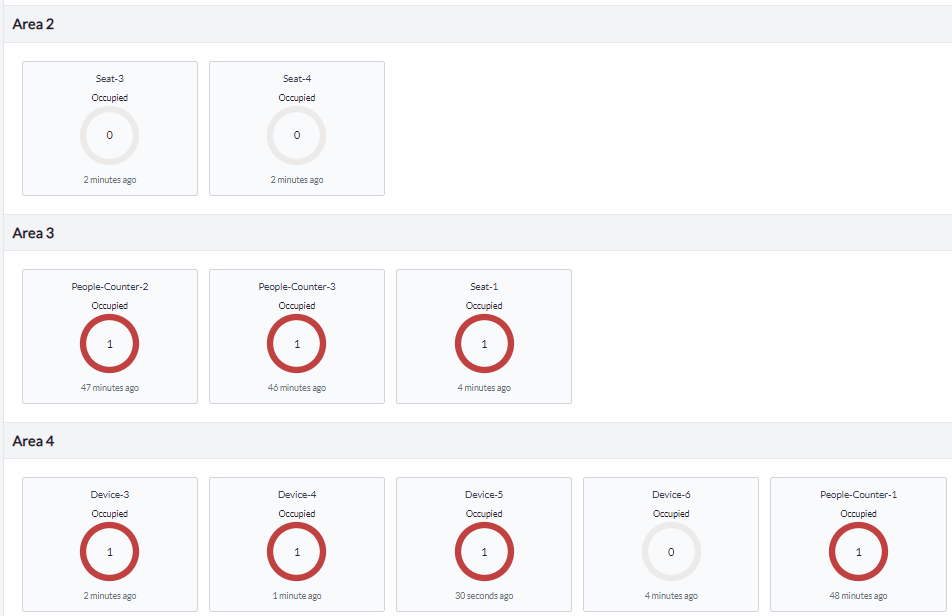

Use the “Group By” feature to organize devices into logical sections. This helps simplify large lists and makes patterns easier to spot.

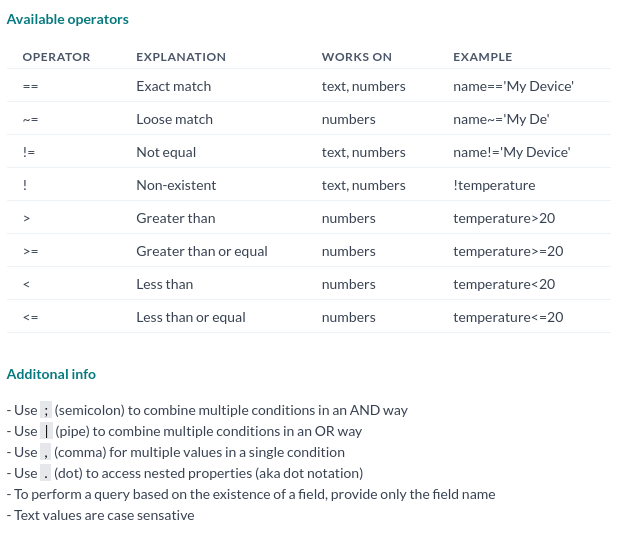

Use powerful FIWARE Q Query syntax to filter devices. This is useful for searching for anomalies or locating devices with specific values like a particular address or building. Read avout it here.

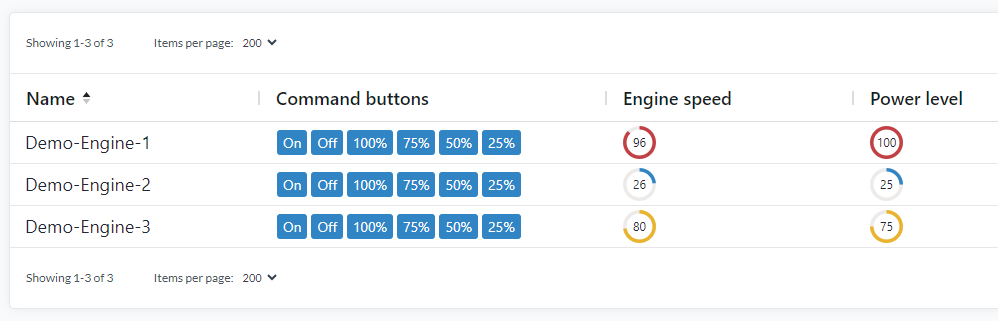

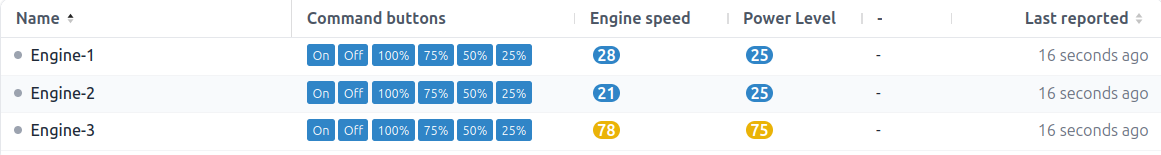

Control actuators directly with command buttons integrated into the view.

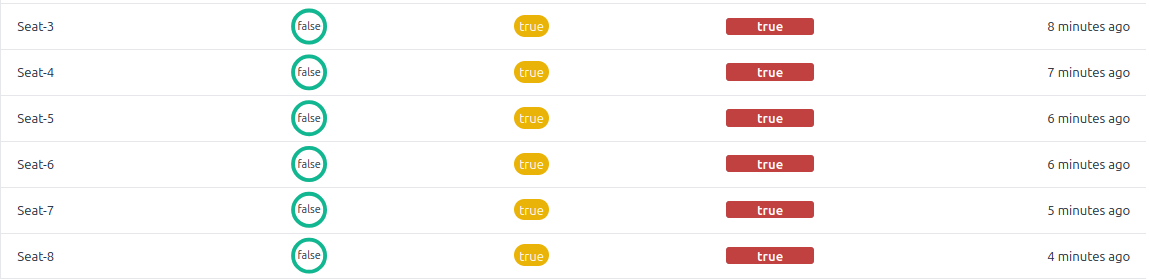

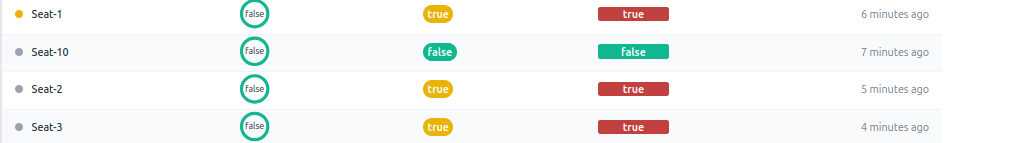

Example of a custom alarm monitoring view that highlights when values are too high or too low-so you don’t have to check data manually.

Learn More

1. Training material for views
2. User guide for Device Views
3. User guide for Device List

Step 3 - Add thresholds and alarms to supervise devices

Alarm translator

Alarm translators are useful for getting alarm data directly on the Data tab in the device, and can be used to create views in the case of a threshold breach. This is logic that monitors incoming data for threshold breaches and greatly simplifies managing thresholds and alarm levels. A translator can be a hardware decoder or any arbitrary code that calculates, joins, or splits data between real or virtual devices. It can range from simple monitoring to advanced logic.

General timer is a special translator that together with the general timer Flow makes it possible to delay an alarm if the trigger value is x for y amount of time.

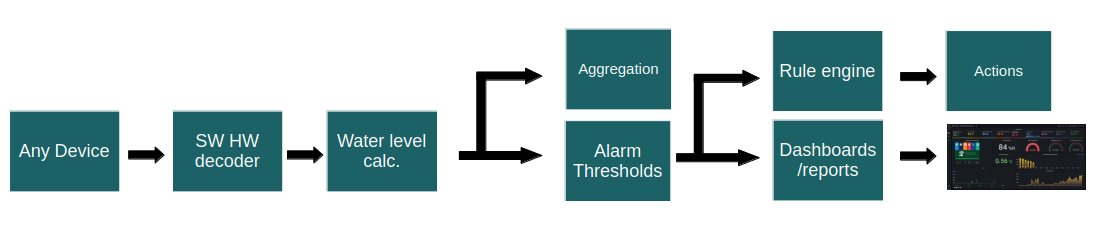

An example of a flow to calculate the liquid volume in a horizontal tank and set alarm thresholds with visualizations

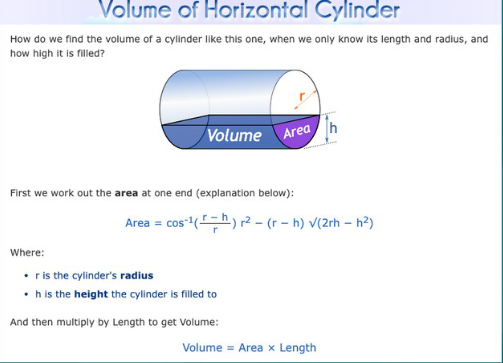

The formula to calculate volume in a horizontal tank implemented in a translator

Learn More

1. User guide for Custom alarm translators
2. Training material for Alarm views and translators which allows you to for example monitor temperature, mold risk, seat occupancy, etc.

Step 4 - Scale up, use Batch Management

Want to scale without repeating the same steps over and over? Batch Management is the key.

There are two main ways to perform actions in batch:

1. Select Many
   Use this feature to execute batch operations on IoT Nodes-edit them, configure them, change translators, and much more.
   In the following lessons, Select Many will be used extensively.

2. Export and Import via CSV
   Export your devices to a CSV file, modify it, and re-import it.
   This allows you to rename multiple devices, add or update values, or edit contextual parameters-all through a simple CSV file.
   It’s a fast and efficient way to perform bulk updates without editing each device manually.

Exporting to CSV is also the easiest way to extract data from the platform.

Learn More

1. Training Material CSV File
2. User guide Select Many
3. User guide Batch Update

Step 5 - Visualization - The map

For a device to appear on the map, it must have a valid position using WGS84 coordinates (Latitude and Longitude). If your device doesn't have a position set, navigate to:

Device List → [Your Device] → Position

There, you can manually place the device at its correct physical location. Once the device appears on the map, you can also reposition it directly by dragging it to the desired location.

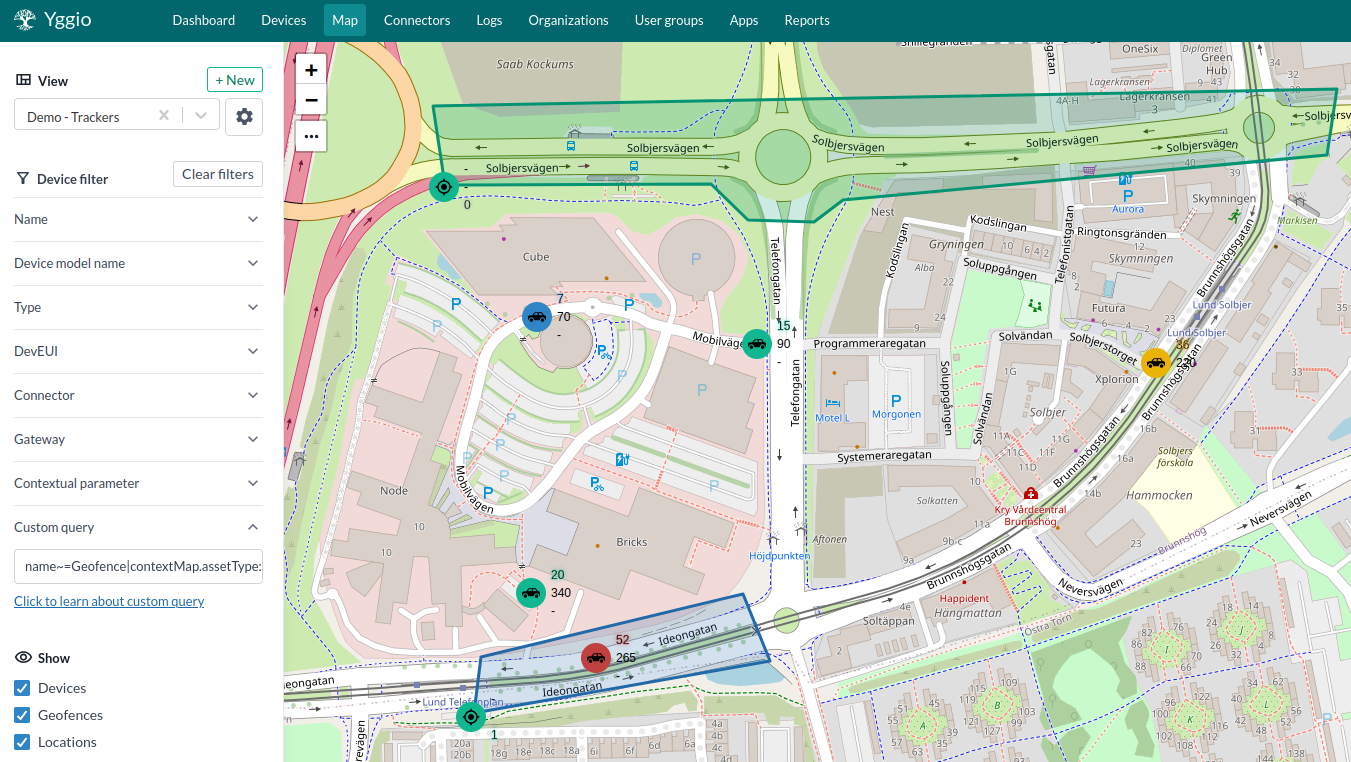

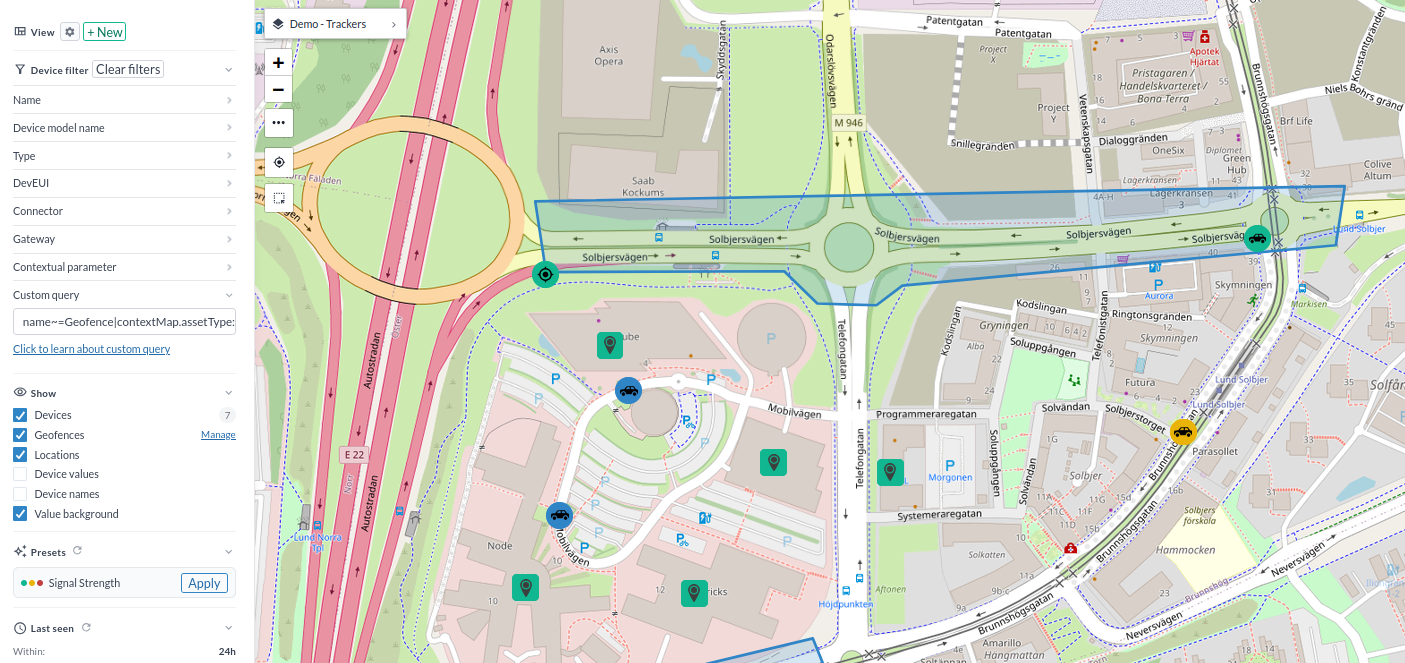

Trackers moving around live on a map view

Map and map views

Map views are used to visualize data geographically. They function similarly to the device list, but instead of displaying data in a table, devices are shown based on their physical location. You can apply color coding to device icons and display values directly on the map. It’s also possible to show geofences along with the number of assets inside, using the general geo query flow together with generic IoT nodes that contain asset details. Map views are useful for quickly identifying relevant devices and data in a spatial context within the Devices section.

Map views are also reused in the Map widget, allowing you to quickly build dashboards with geographical insights.

Learn More

1. User guide map documentation: here
2. Training material The Map

Step 6 - Visualization - Dashboards

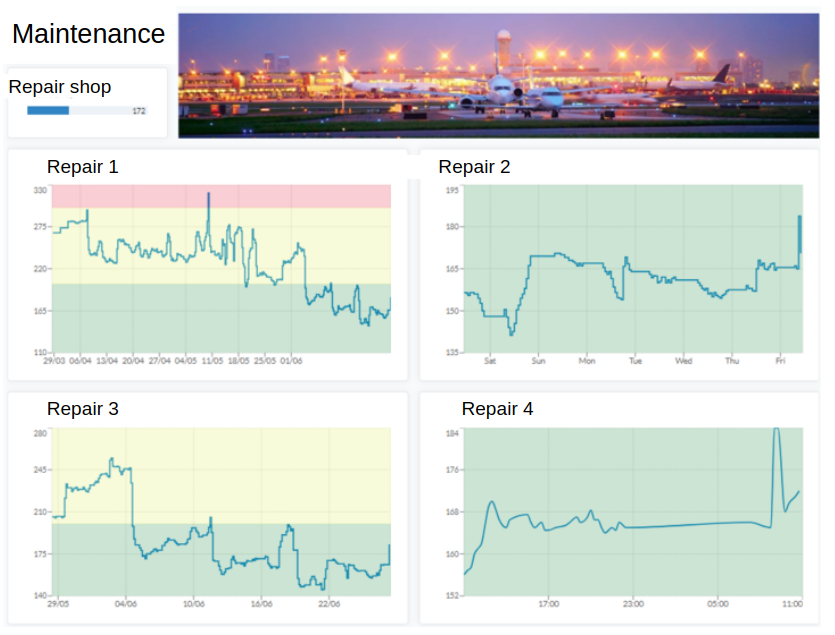

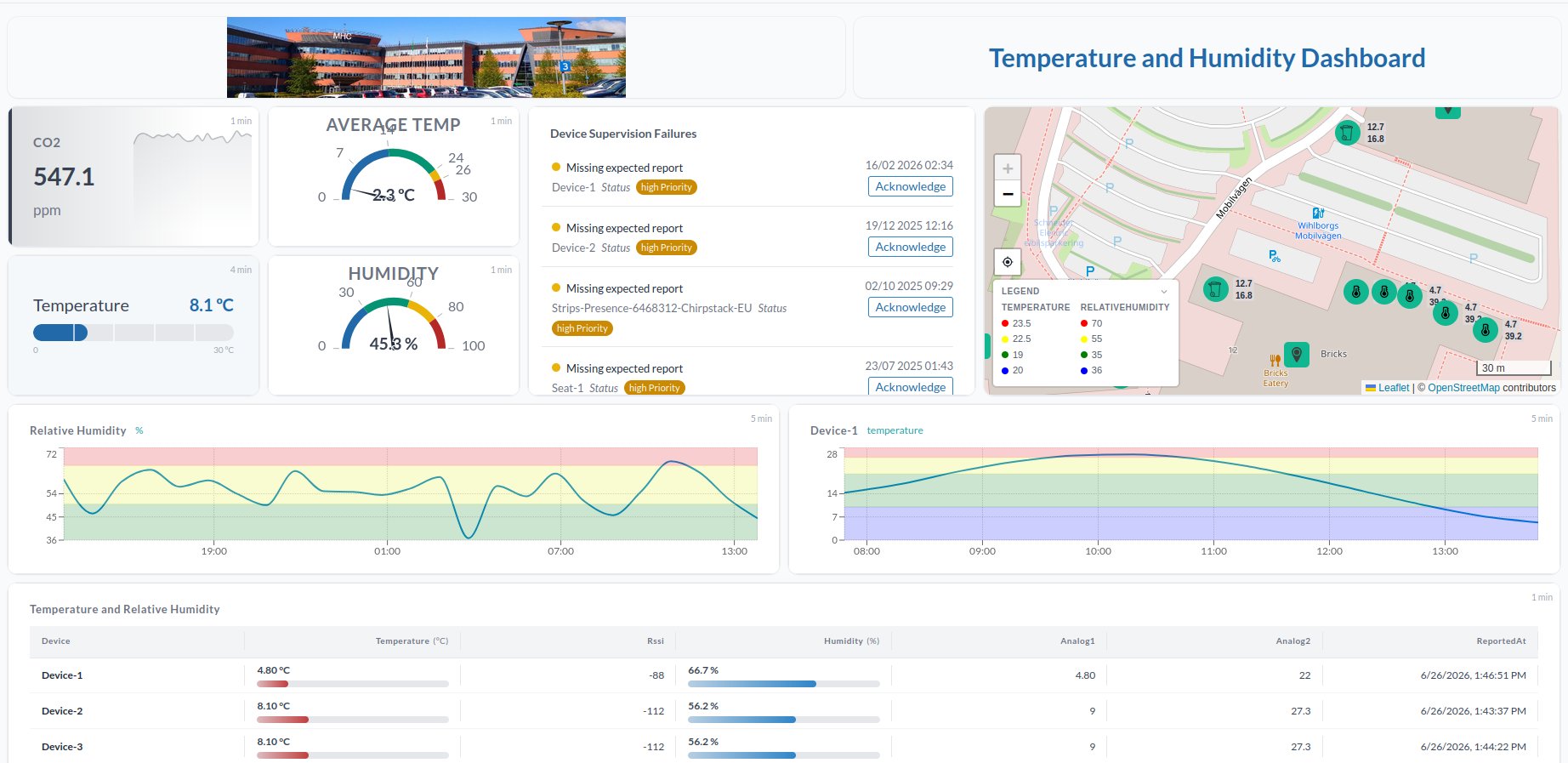

Dashboards are built using drag-and-drop widgets. The available widget types let you customize your dashboard to fit your needs-so let’s get started with creating the dashboard you'll see when you log in. Below is an example dashboard for inspiration.

Available Widgets:

Widget Template	Description
Data table	Display device data in a customizable table format.
Device Value	Displays a device's value as a number, circle, bar, or gauge.
Resource Count	Shows the number of devices, locations, organizations, apps, or rules.
Device Chart	Displays a device's time series data in a chart.
Logs	Shows the latest logs from your devices.
Text	Displays custom text.
Map	Shows the location of your devices on a map or a geotagged image.
Image	Displays an image.
Floorplan Widget	Shows a floor plan and allows you to add IoT nodes to display device values.
Multi-Device chart	Show multiple devices' time series data in a single chart with multiple fields.
Multi-Device Value	Show current values from multiple devices in a grid layout.
Command Buttons	Trigger rules with a button trigger from configurable buttons.
Navigation	Create a direct, customizable link to another dashboard.

1. User guide dashboard documentation: Dashboards
2. Training material Visualize your data with dashboards

Step 7 - The location manager, visualization level 4

The Location Manager is designed to visualize locations, typically buildings.
There are two variants of the Location Manager:

1. Location Manager
   This version allows users to create personal locations using blueprints with overlay icons.
   It is planned to deprecated during 2026 but will remain as the legacy Location Manager for the forseeable future.

2. Floor Plan Widget
   Introduced in version v3.34, the Floor Plan Widget in the Dashboards includes all functionality of the legacy Location Manager - and much more.
   In this new model, a Location will be redefined as a collection of dashboards associated with a specific geographical area.
   These dashboards will be able to get customized to visualize and share all data relevant to that location.

Learn More

1. User guide Location Manager

Step 8 - Access Rights and Data sharing

Users in the platform can share resources in three ways:

1. Direct user-to-user sharing – Share specific resources with individual users.
2. User group sharing – Share resources with a group of users at once.
3. Through the Organization Manager – Set up a hierarchy and apply sharing policies accordingly.

User groups are especially useful for managing permissions across multiple users efficiently. You can easily change access rights for a user or user group-for example, directly through the Device menu.

Access Rights

When sharing a device, you assign the receiver specific access rights that control what they can do:

• Read: View data only
• Write: Modify device settings and data
• Admin: Full control including sharing and managing access
• Peek: System-level read access, not visible in the UI

Access rights granted to a user group apply to all members, and user groups themselves can also be shared.

Ownership itself can also be transferred to another user, separately from the access rights above, using Select Many → Change Owner.

Shareable Resources

• Basic Credential Sets
• Connectors
• Dashboards
• Device groups
• Geofences
• Images
• IoT nodes
• Reports
• User groups

How to share resources

You can direct share resources either while viewing the resource or through Devices → Select Many.

Note: Views in the Device List and Map are not considered shareable resources. They follow a simpler sharing model, as they are seen as personal adaptations.
Views are either personal or shared with the entire organization. If shared, only an organization admin can modify or remove them.

Learn More

1. User guide Direct Sharing and User Groups: Access Rights
2. Training material Direct Data Sharing

The extended workflow

Once you're comfortable with the fundamentals covered in Lesson 1, you're ready to move on to more advanced capabilities of the platform with the Extended Workflow.

Lesson 2 takes a deeper dive into key topics such as data sharing, connectors, 3rd-party app integrations, and custom data flows-all essential for building scalable and intelligent IoT solutions.

Continue to Lesson 2: The Extended Workflow
