CoAP Connector

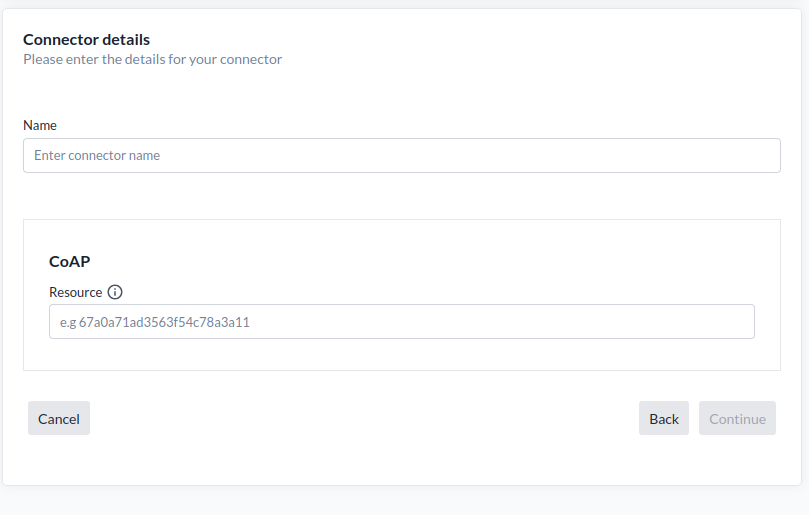

Connector details CoAP

The CoAP connector allows the platform to receive data from CoAP-enabled devices and services.
Typically, the devices use NB-IoT or LTE Cat-M mobile networks as bearer protocols.

Ports

The platform can receive CoAP data on two ports:

• 5683/UDP → CoAP: Unencrypted or protected with OSCORE ([RFC 8613])
• 5684/UDP → CoAPs: CoAP over DTLS, secure

Using the Generic CoAP Connector

Every server provides a standard generic CoAP connector. To use it:

1. Create a generic node
   • As secret, define:

generic_coap_[your secret identifier]

2. POST CoAP data from your device or service:

• coap://staging.yggio.net:5683/in/generic
• Use content format: application/json.

3. JSON message body example:

{
  "secret": "[your secret identifier]",
  "encodedData": {
    "hexEncoded": "32874387bd387342fed74843832"
  }
}

4. Add and existing or develop a new translator to decode the incoming data

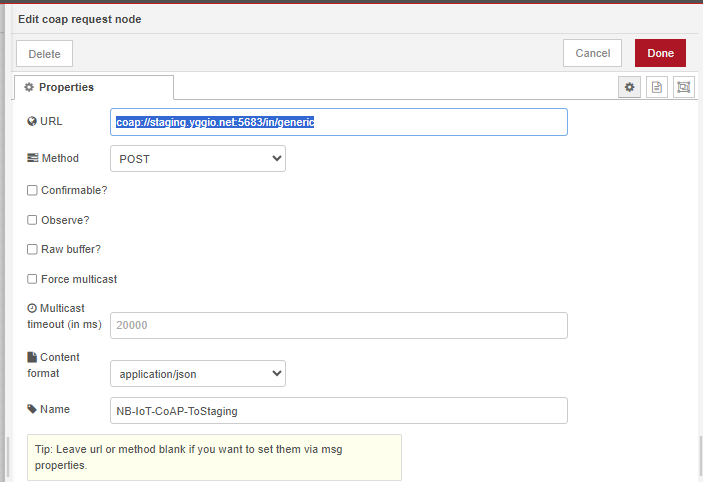

Example: Node-RED CoAP Request

Below is an example Node-RED CoAP Request node that sends CoAP data to a device using the generic CoAP connector:

Additional Information

1. DTLS Encryption

   • The platform supports CoAP over DTLS.

   • PSK - Pre Shared Key, RPK - Raw Public Key or X.509 Certificates are required.

     DTLS Key Type	Security	Complexity	Use Case
     PSK (Pre-Shared Key)	Medium	Low	Constrained devices, small fleets
     RPK (Raw Public Key)	High	Medium	Medium-scale deployments, secure key exchange without CA
     X.509 Certificates	Very High	High	Large-scale deployments, enterprise/industrial IoT

   • → Contact your support representative if you want to enable DTLS.

2. LwM2M Support

   • CoAP is commonly used as the transport protocol for LwM2M-enabled devices.
   • The platform includes a built-in LwM2M server.
   • → Contact your support representative if you want to use LwM2M.

3. OSCORE (RFC 8613)

   • CoAP can be secured with end-to-end encryption using OSCORE.
   • The platform has built-in OSCORE support.
   • → Contact your support representative if you want to enable OSCORE.

4. Vendor-Specific CoAP Endpoints

   • Many NB-IoT/Cat-M CoAP device manufacturers define their own CoAP API to post data.
   • Except LwM2M, there is no firm standard in CoAP, and variations often involve different CoAP endpoints (similar to custom HTTP endpoints).
   • To support such devices, a customized CoAP connector is usually required.
   • → Contact your support representative for assistance.
