Lesson 3.7 Translator development

A translator decodes a device's raw payload into the IoT platform's flat, canonical data model - turning TempC_SHT or a hex blob into temperature, °C. In the earlier lessons you used translators; in this one you'll build, test and upload your own.

The full reference (data-model rules, complete templates, tooling) is the developer guide Translator Development and the Translator API. This lesson walks you through it hands-on.

Before you start​

  • Access to your server's Swagger UI (https://staging.yggio.net/swagger) to upload the translator and attach it to a device.
  • Node.js installed if you want to run the local test harness.
  • Basic JavaScript.

Exercise 1 - Why the data model matters​

Open the data-model field table and note how the same measurement always has the same field name, unit and quantity - temperature (°C), relativeHumidity (%), batteryVoltage (V). This is what lets one alarm, dashboard or Grafana panel work across every device. The golden rule: map a device's raw names to these canonical names - never invent a new spelling.

Exercise 2 - Build and test a translator​

  1. Copy a template from Translator Development - start with Template 1 (wrap a manufacturer reference decoder) or Template 2 (decode a byte spec yourself). Many vendor decoders read the payload as a Node Buffer (buf.readInt16BE(...)) - the guide includes a Buffer variant for that common case.
  2. In the translate function, map the decoder's raw output to canonical fields as the final step, converting units (e.g. mV → V, hPa → Pa).
  3. Test it locally with the harness (translator-harness.js): put your function in translate.js, add a real payload and expected output to the CASES array, then run npm install lodash && node translator-harness.js. Green = the sandbox will run identical logic.

Exercise 3 - Write a clear description​

The description is what a user reads in the IoT platform to decide whether your translator fits - write it well:

  1. Start with one plain-language sentence: what the device is (hardware), or what it computes (chained / analytics).
  2. Add a ### Decoded output list - `fieldName` (unit) - meaning for each emitted field.
  3. For analytics / chained translators, also explain the logic, the inputs it reads, and the use case. Their value isn't obvious from a field list, so a vague description gets the translator mis-applied. Example: "Turns a cumulative energy meter into consumption per day/week/month, resetting at local midnight; pair with set-alarm-energy-consumption to catch overspend."

This is how a translator's description, data model, and parameters render once it's added to a device:

Translator description example

Exercise 4 - Package and upload​

  1. Fill in manifest.json (name, version, apiVersion, description, match, spec, optional parameters) - declare each output field in spec with its {type, unit, quantity}.

  2. Run node translator-build.js to produce translator.json.

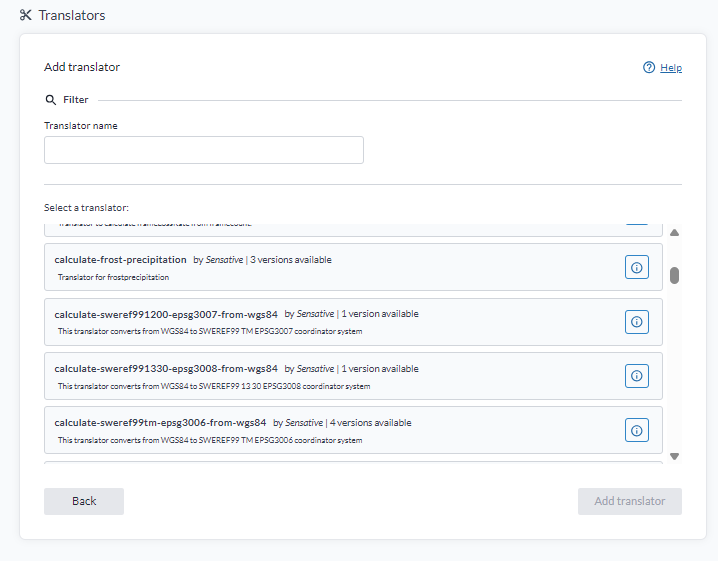

  3. POST it to the translators endpoint in Swagger, then attach it to a device via the device's translatorPreferences. Alternatively, attach it directly from the device's Translators section: click + Add translator, filter by name, and click the (i) button next to a result to preview its description before adding it.

    Add translator picker with filter and info button

  4. Send (or simulate) a payload and confirm the decoded, canonical fields appear on the device.

Exercise 5 - Troubleshoot​

If nothing appears after an update:

  • Open the device's Logs, filter Type = Debug, Category = System
    • a crashing translator logs its error there (kept for 6 hours). Copy the failing input back into the harness to reproduce.
  • No log at all? The translator either ran fine or never triggered - check the device's Last reported column; if it updated, the translator ran.
  • Most common cause: an output field not in spec, or a non-canonical name.

What you learned​

  • Why translators must emit canonical field names, units and quantities.
  • How to build, test locally without any of the IoT platform's infrastructure, package and upload a translator.
  • How to find and fix a failing translator via the device Logs.

Where next​

  • Translator Development - templates for calculate, set-alarm and analytics translators, and the full checklist.
  • Related: Node-RED - a great SDK for building and simulating translators. This is the last lesson in the module.
